WSE

WSE introduces the raw signals of up to four wheel speed sensor into HIL simulations.

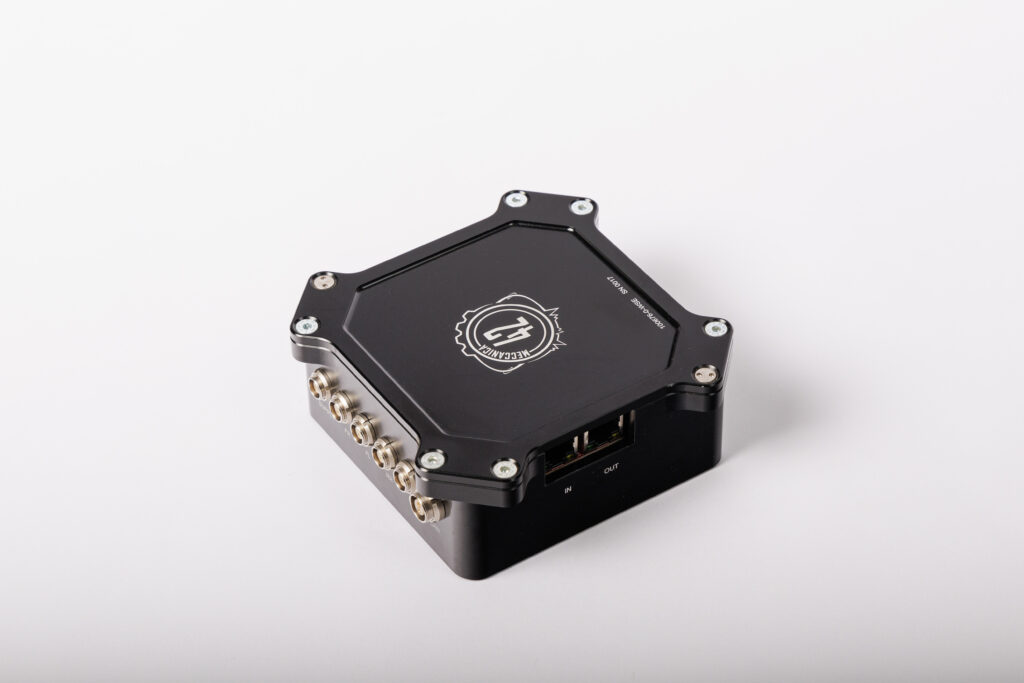

Wheel Speed Emulator (WSE) on white background

Protocols availableDF11s, DF11i, DF11v​
Supply Voltage12V
Output current levels7-14-28 mA​
Communication    ​EtherCAT or CAN​
Communication rateup to 100Mbps (EtcherCAT)​
 up to 1Mbps (CAN)​
Features:​• tunable wheel Parameters (Radius, pole number)​
• user defined data protocol bits​
• switching protocol
• AK protocol
