EPSiL

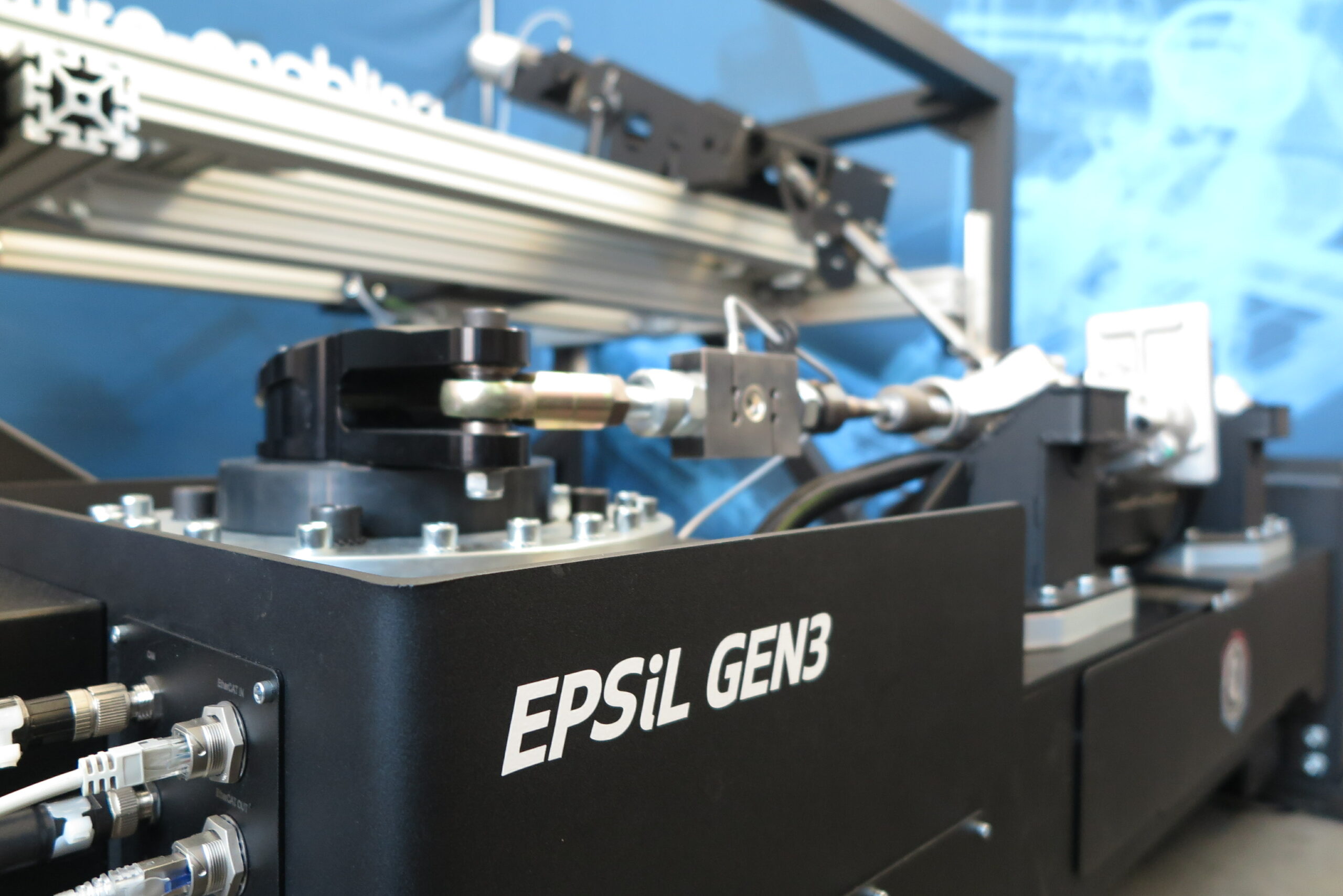

Our HiL steering test bench allows the real-time testing of complete steering systems indoors.
It is designed to test the interaction between the wheel forces, steering functions and human beings in a controlled environment.
It enables human-driven tests into driving simulators or fully robotized tests as a stand-alone unit.
EPSiL applies the steering links forces respecting the vehicle kinematics and dynamics, while the driver handles the steering wheel and the EPS interacts with the virtual vehicle.
Our steering test bench is suitable to develop, tune and validate steering functions in:
- Vehicle dynamics
- Assistance torque
- Steering feel
- ADAS/AD
- FUSA/SOTIF
| Technical Feature | Technical Specification |
|---|---|
| Possible steering systems under test | All EPAS, Steer by Wire, Motorsport, etc. |
| Force on each steering link | Standard sizes: |
| »EPSiL10 | |
| 10000 N peak | |
| 3400 N rms | |
| »EPSiL20 | |
| 20000 N peak | |
| 4030 N rms | |
| Bandwidth | >14 Hz (for standard sizes) |
| Sensors accuracy | 0.2% FS |
| Communication latency | <3ms |
| Safety system | Multisensor-based STO |
| Plane of motion | Standard configuration: XY or YZ |
| Overall dimension standard size (X-Y-Z) | 675 – 2300 – 657mm |
| Adjustment of outer steering link distance in Y direction | ±120 mm (std) |
| Adjustment range of the steering gear in Z direction | ±30 mm (std) |
| Adjustment range of the steering gear in X direction | +20/-30 mm (std) |
| Possibility to use in a dynamic simulator | Optional |
| Possibility to robotize the steering wheel | Optional |
| Possibility of integration with TA-FA system | |
| Max dynamic torque of the steering robot (opt) | 43 Nm |
| Nominal dynamic torque of the steering robot (opt) | 10 Nm |
| Communication protocol with the real time machine | Ethercat, CAN, Flexray, other. |
