PSA

PSA is a high-performing on board device, that enables the development of any autonomous steering function

PSA ensures a precise and independent management of the steering gear, and can be operated either in position, torque or speed control.

With a focus on safety, the implementation of a fall-back strategy allows to confidently face emergency situations.

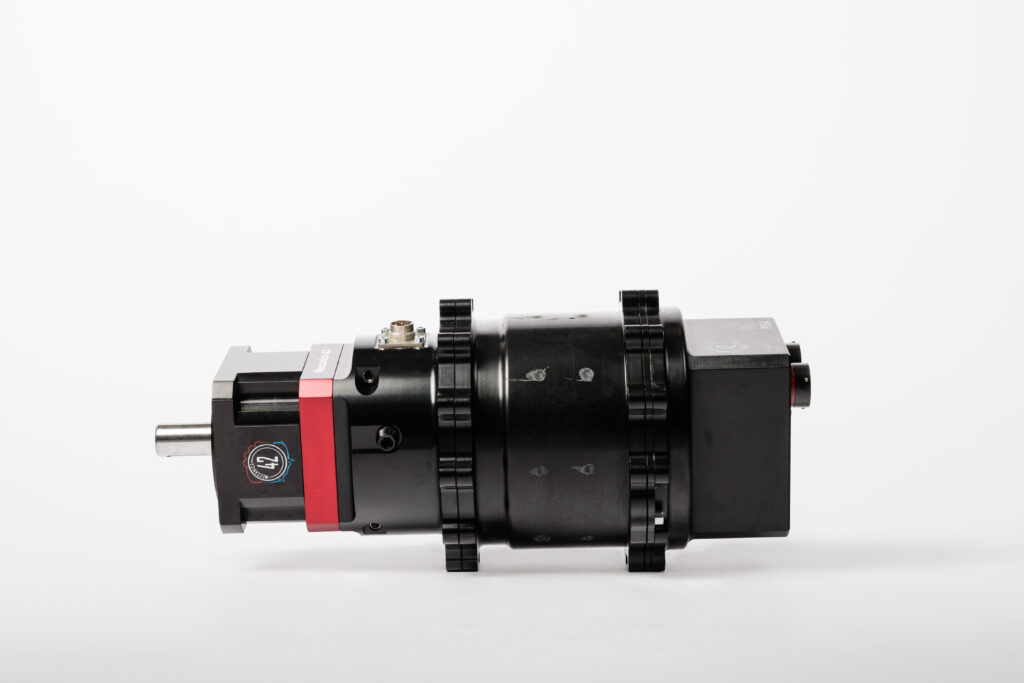

Side view of the Pinion-type Steering Actuator (PSA) on white background

FEATUREVALUE
Rated Torque45 Nm
Peak Torque90 Nm
Rated Speed125 rpm
Maximum Speed160 rpm
Typical Dimensions (³)370 x 170 x 170 mm
Typical Weight (³)9.5 kg (w/o internal brake)
Voltage12-48 V
Nominal Current (¹)12 A
Max Current24 A
Rated Power585 W
